Bone Graft Delivery Devices
Request a Quote »
Bone Graft Delivery Devices
OsteoPrecision™ & OsteoXpress™
Nordson MEDICAL's graft delivery devices are designed to deliver hydrated allograft, autograft, or synthetic bone graft materials to an orthopedic surgical site. They are designed to facilitate the premixing of bone graft materials with fluids such as IV fluids, blood, plasma concentrate, platelet-rich plasma, bone marrow, or other specified blood components as deemed necessary by the clinical use requirements.
Request a Quote »Maximize Material Utilization
The OsteoPrecision™ graft delivery device is designed for targeted delivery of hydrated allograft, autograft, or synthetic bone graft materials to an orthopedic surgical site, while maximizing material utilization. Available in vented and non-vented configurations, all devices are 15cc. Graft materials not included.

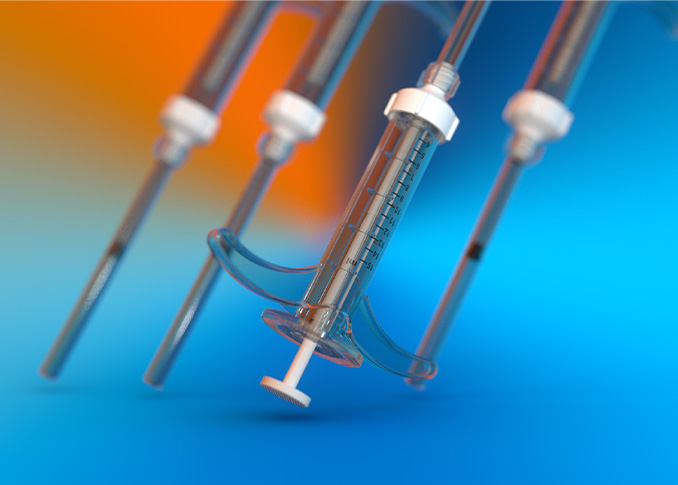

OsteoPrecision™
Bone Graft Delivery Devices
Integrated Stylet
- Maximizes material utilization and simplifies delivery with an all-in-one configuration
- Minimizes packaging size for easier storage

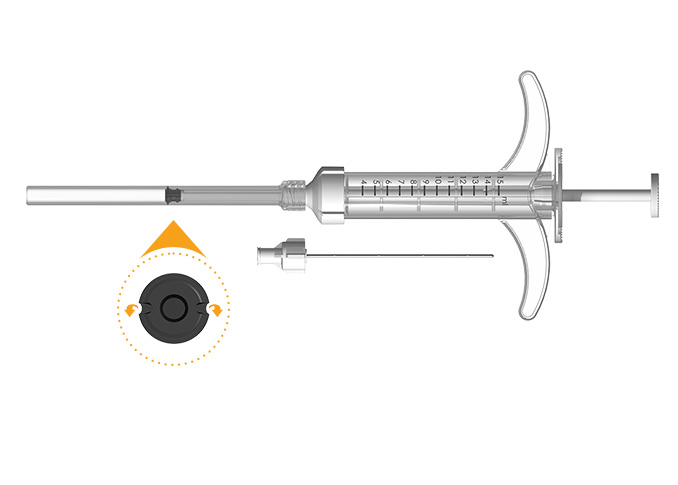

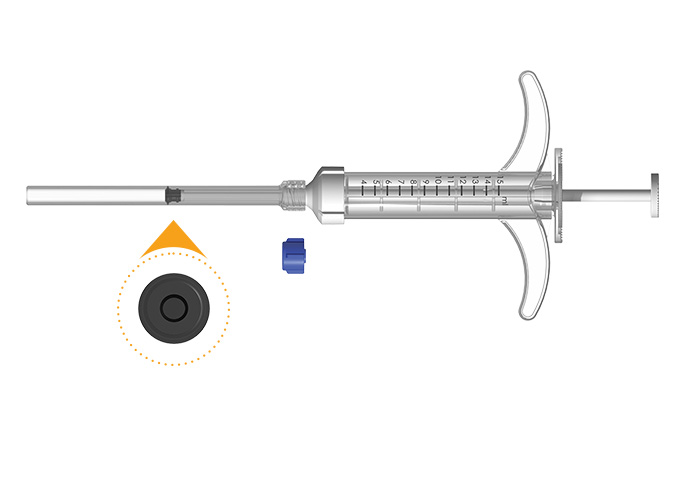

Vented and Non-vented Options
- Vented Configuration:
Vents air for saturation and hydration of materials - Non-Vented Configuration:
Allows for pre-filling of materials when hydration is not required
Tapered Cap & Wide Bore Cannula
- Allows for the extrusion of high viscosity bone materials
Easy Operation
- Multiple cannula options (5cm, 10cm, 15cm) allow for delivery of graft materials to targeted surgical sites
- Available female luer adapter connects directly with a standard syringe for easy hydration (OP vented versions only)
- Optional hydration tube evenly distributes liquids into material for consistent hydration
- Large finger flanges allow for a better grip and is designed for one-handed ease-of-use
Custom OEM Solutions
- Inquire today about customizing this device for your biomaterial.
OsteoPrecision™ Configurations
Designed to deliver allograft, autograft or synthetic bone graft materials to an orthopedic surgical site.
GD-1115-150
15 cm Cannula
Sterile
GD-1015-150
15 cm Cannula
Sterile
GD-1215-150
15 cm Cannula
Sterile
OsteoXpress™
Bone Graft Delivery Devices
OsteoXpress™ bone graft delivery products continue our commitment to meet the needs of specific orthopedic surgical procedures.
OsteoXpress™ graft delivery devices are designed to hydrate allograft, autograft, or synthetic bone graft materials and deliver to an orthopedic site. Find out how easy this system is. Just assemble the system using the unique functional tray, saturate the materials with a hydration syringe, and easily deliver the graft log.
With decades of experience providing OEM solutions to biomaterial manufacturers, we can provide support from concept to commercialization.
Fill
- Allows simple integration of graft material and hydration fluid
- Unique tray with funnel for conveniently filling barrel with graft material
- 15cc barrel allows for creation of small or large logs based on procedure
Hydrate
- Patented, vented membrane releases air during hydration, allowing for saturation of graft material
- Female luer on distal end for simple connection to hydration syringe
Deliver
- Removable threaded cap maximizes graft utilization and allows for easy delivery of graft log
- Large finger flanges for better grip when expressing graft
OsteoXpress™ Configurations
OsteoXpress™ Bone Graft Delivery products continue our commitment to meet the needs of specific orthopedic surgical procedures.

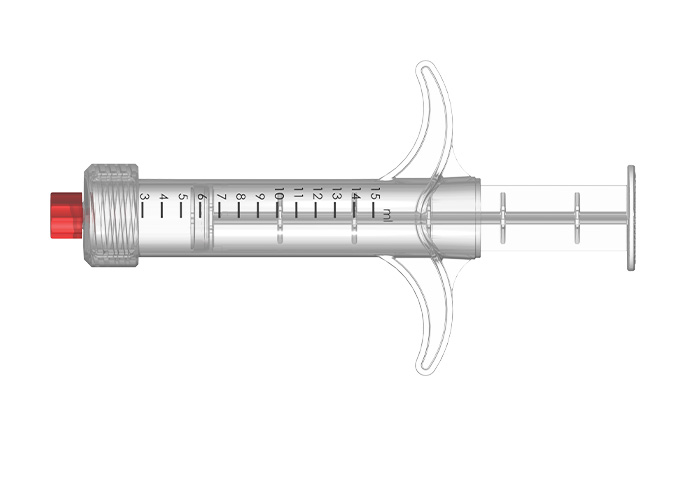

GD-5515
Graft Delivery Device, 15cc
Graft materials not included.
Can be ordered off the shelf, customized, or private labeled to meet your specific needs.

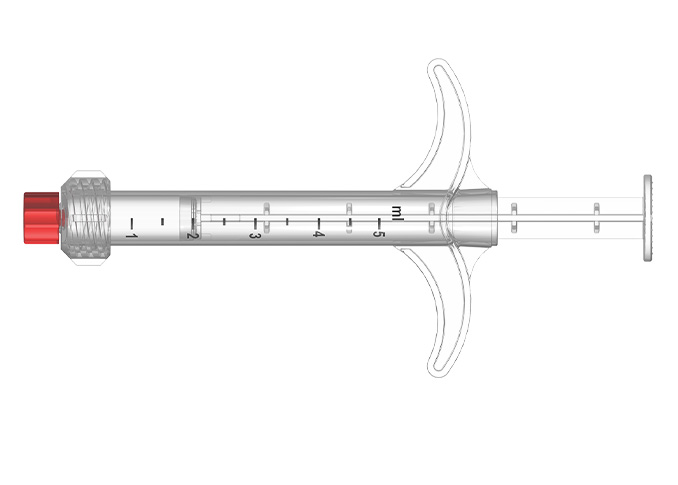

GD-5505
Graft Delivery Device, 5cc
Graft materials not included.
*Note: Graft materials are not included.
OsteoPrecision™ and OsteoXpress™ Graft Delivery Devices are FDA cleared, CE marked, registered in Canada and Australia. GD-5505 OsteoXpress™ Graft Delivery Device can only be shipped within the U.S.A.
Rx Only. Federal (USA) law restricts these devices for sale by or on the order of a physician. Indications, warnings and instructions for use can be found in the product labeling supplied with each sterile device. ©Nordson MICROMEDICS. OsteoPrecision™ and OsteoXpress™ Graft Delivery Devices are registered trademarks of Micromedics, Inc. All rights reserved.
1849328 Rev. A 2025-10
Contact us to learn more about how we can partner with you to customize a delivery device.
Contact Us »Custom OEM Solutions
We have decades of experience providing OEM solutions to biomaterial manufacturers. We can provide support from concept to commercialization. Custom solutions and private labeling are available.
Technical Information
- Fibrin sealants
- Orthobiologics
- Bone cement
- Platelet-rich plasma
- Adhesion prevention products
- Autologous graft
- Powder hemostats
- Regenerative biologics
- Hydrogels
- Polymers
- Endoscopic
- Laparoscopic
- Topical
- Patch
- Hydration
- Automated injection
- Spray
- Single/dual spray
- Flexible/malleable dual lumen
- Directional
- Gas assisted
- Pneumatic assist applicator
- Regulator
- Topical
- Endoscopic/Laparoscopic
- Dual options
- Single- and dual-syringe applicators
- 1-component syringes and cartridges
- 2K cartridges, static and metering mixers, and accessories
- Patented applicators with positional spray tips
- Manual & gas-assisted (laparoscopic) applicators
- Full range of tips, needles, and pistons
- High-performance dispensers with viscosity compensation
- Broad portfolio of valve technologies, including jetting
Flexure™ Malleable Tips
Achieve accurate placement of materials in medical procedures. Obsessively engineered for flexibility and stability to keep your desired form, experience ease-of-use with our malleable tips. With single and dual wire options in various lengths, the atraumatic tips bend in any direction, allowing for safe placement, and the clear cannulas offer material flow visibility.
